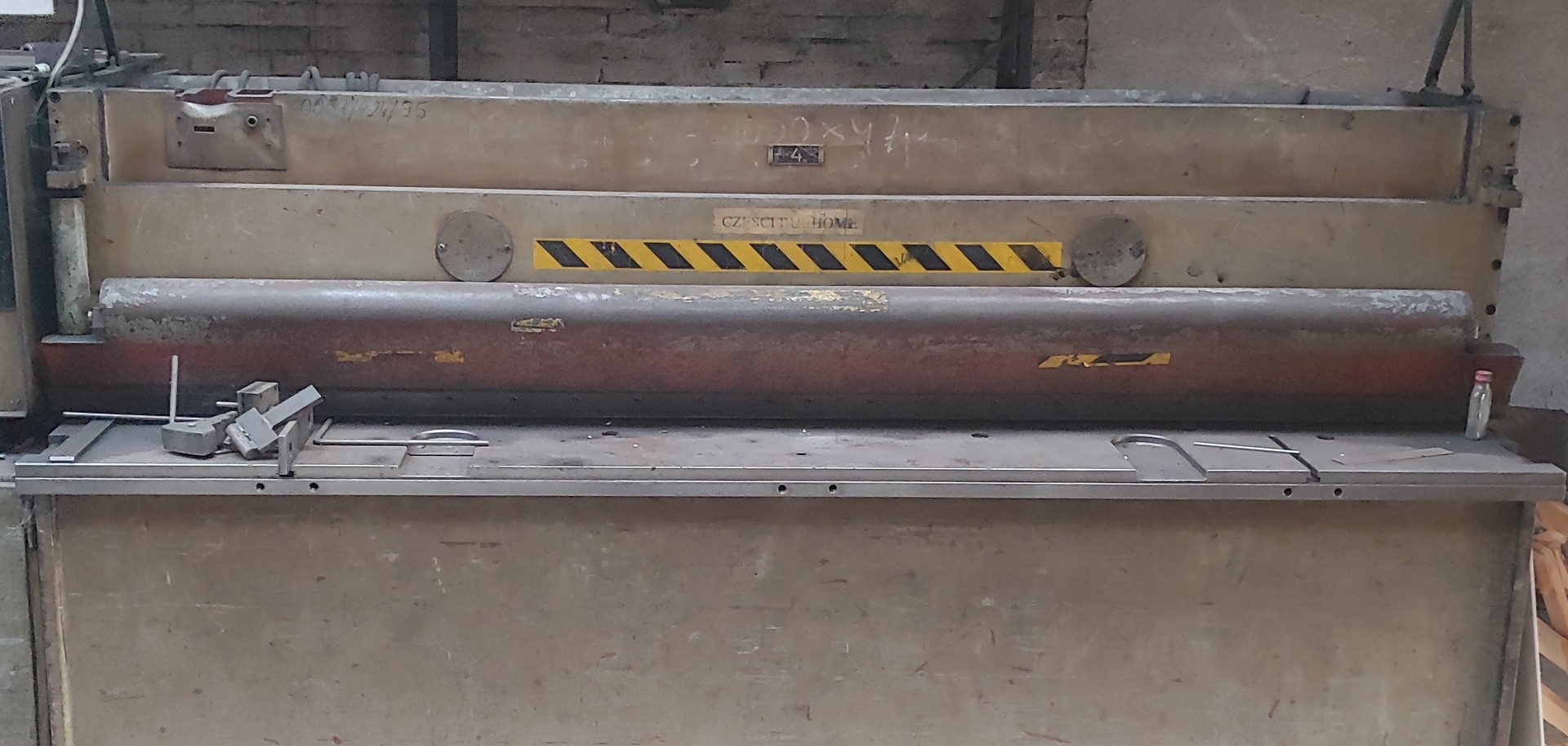

STROJARNE PIESOK NTC 2500/4 guillotine shears

STROJARNE PIESOK NTC 2500/4 guillotine shears were built in 1985 in Czechoslovakia. The machine, distinguished by its extremely sturdy design, is used for cutting sheet metal with a maximum thickness of 4 mm. The machining process is performed by high-quality cutting blades with an electrically adjustable gap between the blades. The NTC 2500/4 guillotine shears weighs approximately 3800 kg. Technical specifications of the STROJARNE PIESOK NTC 2500/4 guillotine shears maximum sheet metal thickness (Rm=450 MPa): 4 mm minimum sheet metal thickness: 0.6 mm maximum sheet metal length: 2500 mm cutting angle: 1°33′ reach: 200 mm back stop stroke: 4-750 mm back stop drive: electric back stop motor power: 0,25 kW main motor power: 4 kW installed power: 6.5 kVA power supply: 3x 380 V; 50 Hz dimensions (L x W x H): 3100 x 1600 x 1500 mm weight of the machine: approx. 3800 kg
