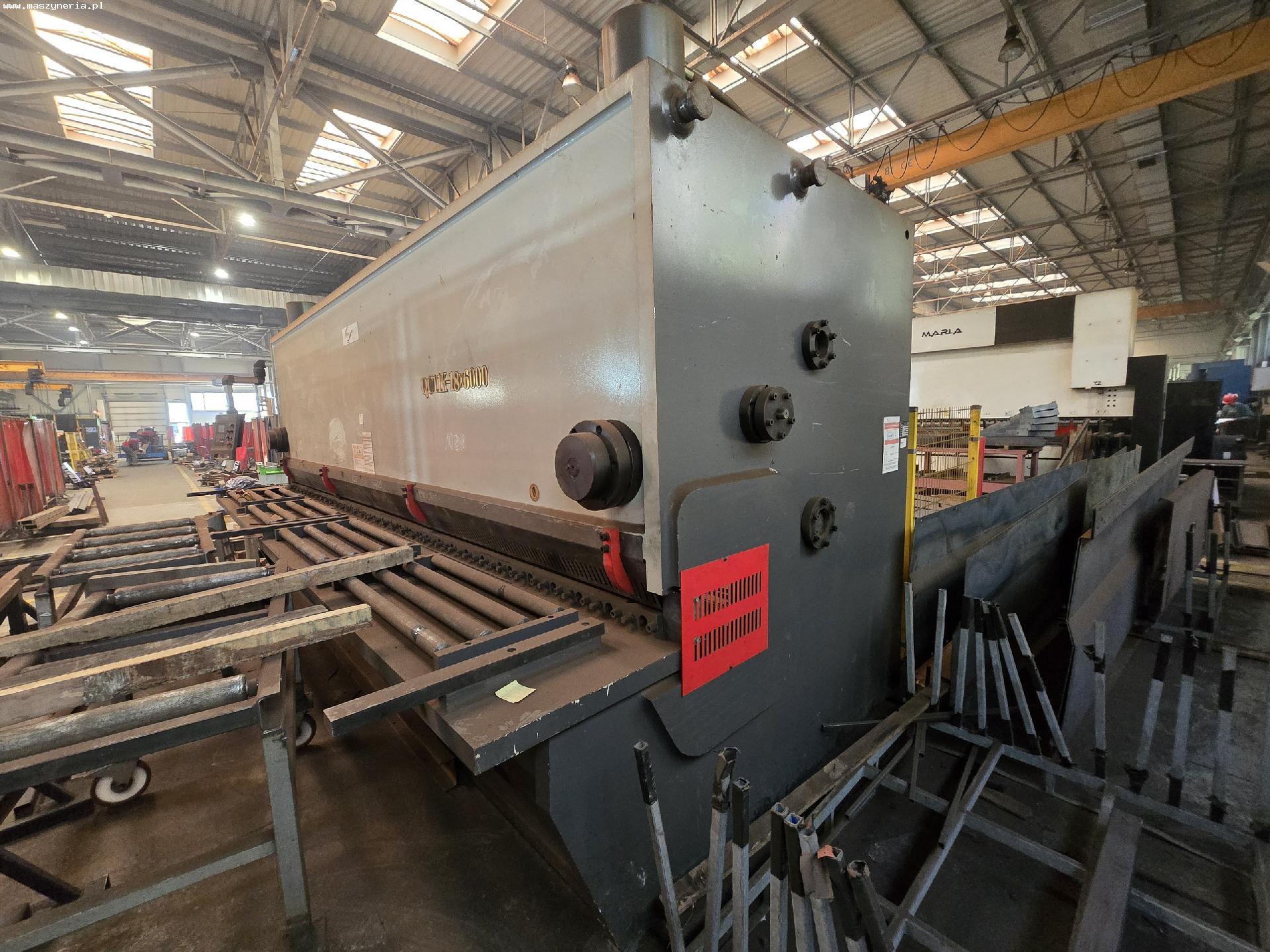

QC11K 18×6000 hydraulic guillotine shears

QC11K 18×6000 hydraulic guillotine shears were built in 2018. This highly efficient machine is designed for precision cutting of sheet metal made from e.g. steel, non-ferrous metals, as well as selected plastics. Workpieces with a maximum thickness of 18 mm are machined by means of high-quality cutting knives with four cutting edges. All process parameters, on the other hand, are programmed on the intelligent DELEM CNC control with an intuitive interface and many useful functions. The QC11K 18×6000 guillotine shears weighs 40000 kg. Technical specifications of the QC11K 18×6000 guillotine shears maximum cutting length: 6000 mm maximum sheet metal thickness (Rm=420 N/mm2): 18 mm maximum sheet metal thickness (Rm=700 N/mm2): 12 mm work table height: 900 mm back stop stroke: 1000 mm adjustable gap between blades and cutting angle motor power: 21 kW power supply: 400 V; 50 Hz weight of the QC11K machine: 40000 kg Equipment of the QC11K hydraulic guillotine shears CNC controller: DELEM DAC-362s segment knives with four cutting edges (2 pcs) top knives sharpened at an angle hydraulic material hold-downs overload protection foot switch control USB port
