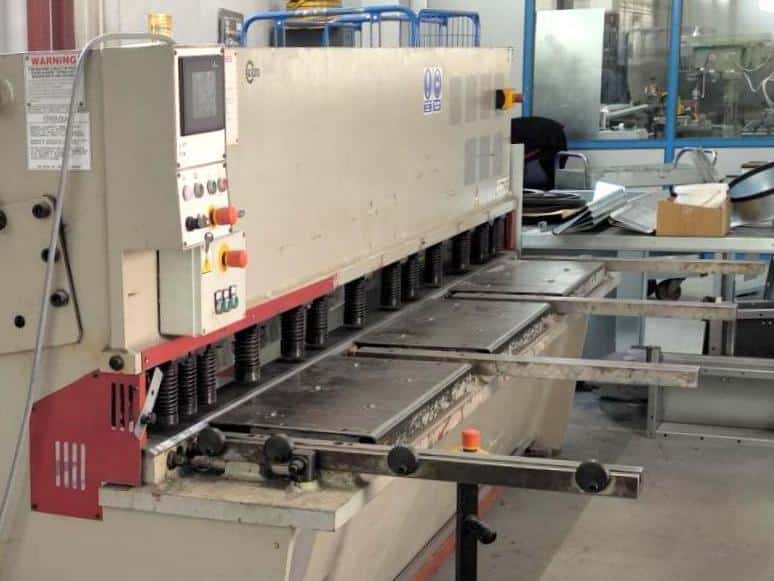

EUROMETAL HGS 6×3200 NC hydraulic guillotine shears

EUROMETAL HGS 6×3200 NC hydraulic guillotine shears built in 2012 are used for precision sheet metal cutting with a maximum thickness of 6 mm. The machining process is performed by precision cutting knives with an option to adjust the gap between the blades while the upper cutting knife is mounted on a swing beam. This solution allows the machining of both steel sheets and workpieces made of non-ferrous metals. The simple design with efficient hydraulic system additionally ensures trouble-free operation throughout the entire lifetime, while at the same time maintaining the highest cutting quality. The EUROMET HGS 6×3200 NC guillotine shears weigh approximately 6600 kg. Technical specifications of the EUROMETAL HGS 6×3200 NC guillotine shears maximum workpiece length: 3200 mm maximum workpiece thickness: 6 mm cutting angle: 1°30′ stroke rate: 14/min cutting blade length: 3300 mm foot switch controller distance between sidewalls: 3430 mm table height: 800 mm motor power: 7.5 kW dimensions (L x W x H): 3840 x 1675 x 1620 mm weight of machine: approx. 6600 kg
