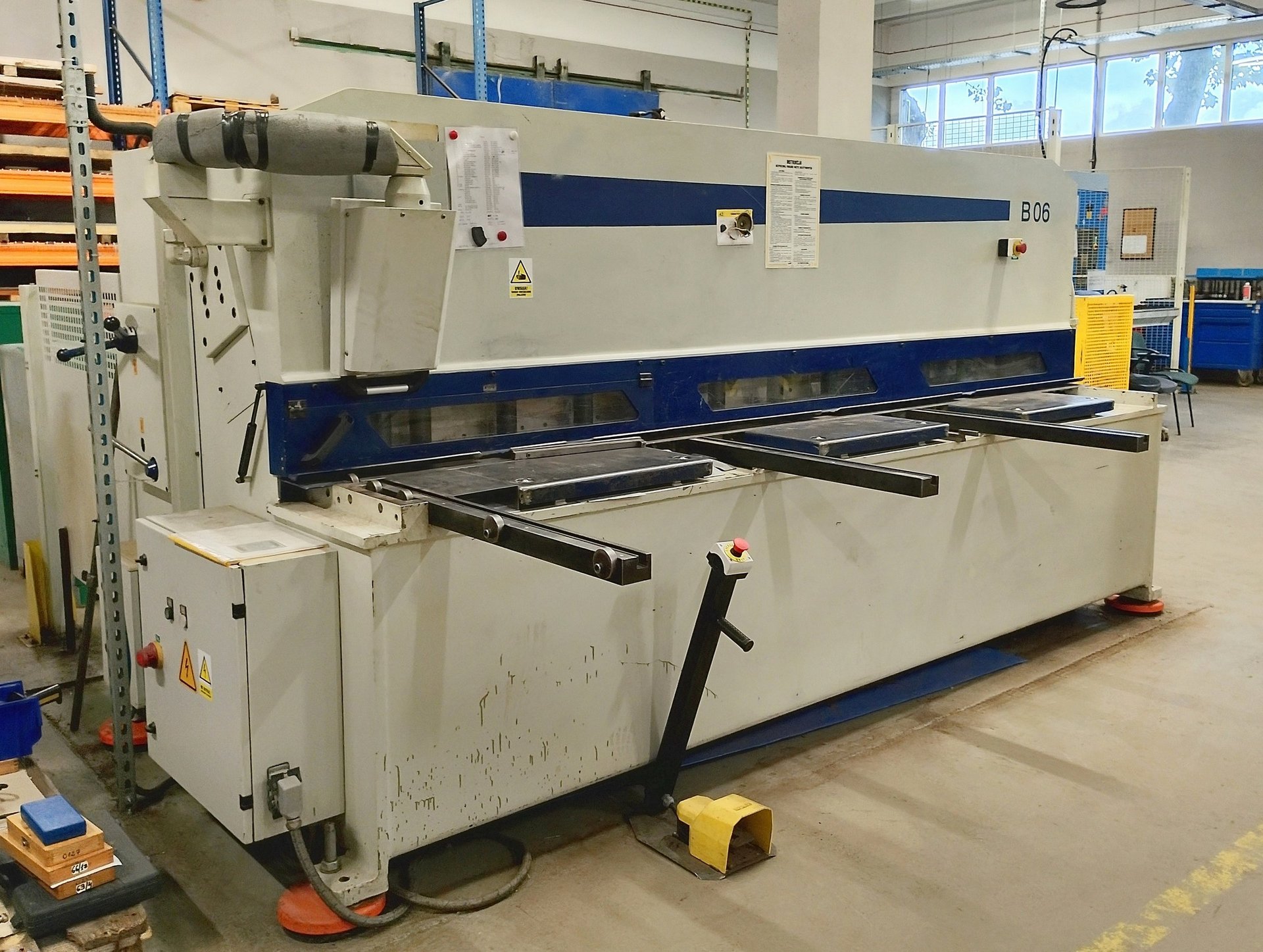

MVD B06-3100 hydraulic guillotine shears

MVD B06-3100 hydraulic guillotine shears were built in 2014 in Turkey by MVD Inan Machine Tool Industry Co. The machine is used for precision cutting of sheet metal with a maximum thickness of 6 mm. The machining process is performed by means of high-quality cutting knives, set at an angle of 1.5°. Positioning of the material is facilitated by a work table with integrated balls, on which the workpiece goes directly under the cutting line. All this is complemented by a robust design with a reliable 10 kW main motor. The MVD B 06-3100 guillotine shears weigh approximately 6000 kg. Technical specifications of the MVD B06-3100 guillotine shears maximum sheet metal length: 3100 mm maximum sheet metal thickness: 6 mm number of strokes (automatic mode): 30/min number of strokes (manual mode): 18/min cutting angle: 1,5° minimum distance of light curtain from knife: 2030 mm foot switch control maximum hydraulic pressure: 210 bar pump pressure: 300 bar oil tank capacity: 160 l main motor power: 10 kW power supply: 3x 400 V; 50 Hz dimensions (L x W x H): 4300 x 2630 x 1600 mm weight of the MVD B 06 3100 machine: approx. 6000 kg
