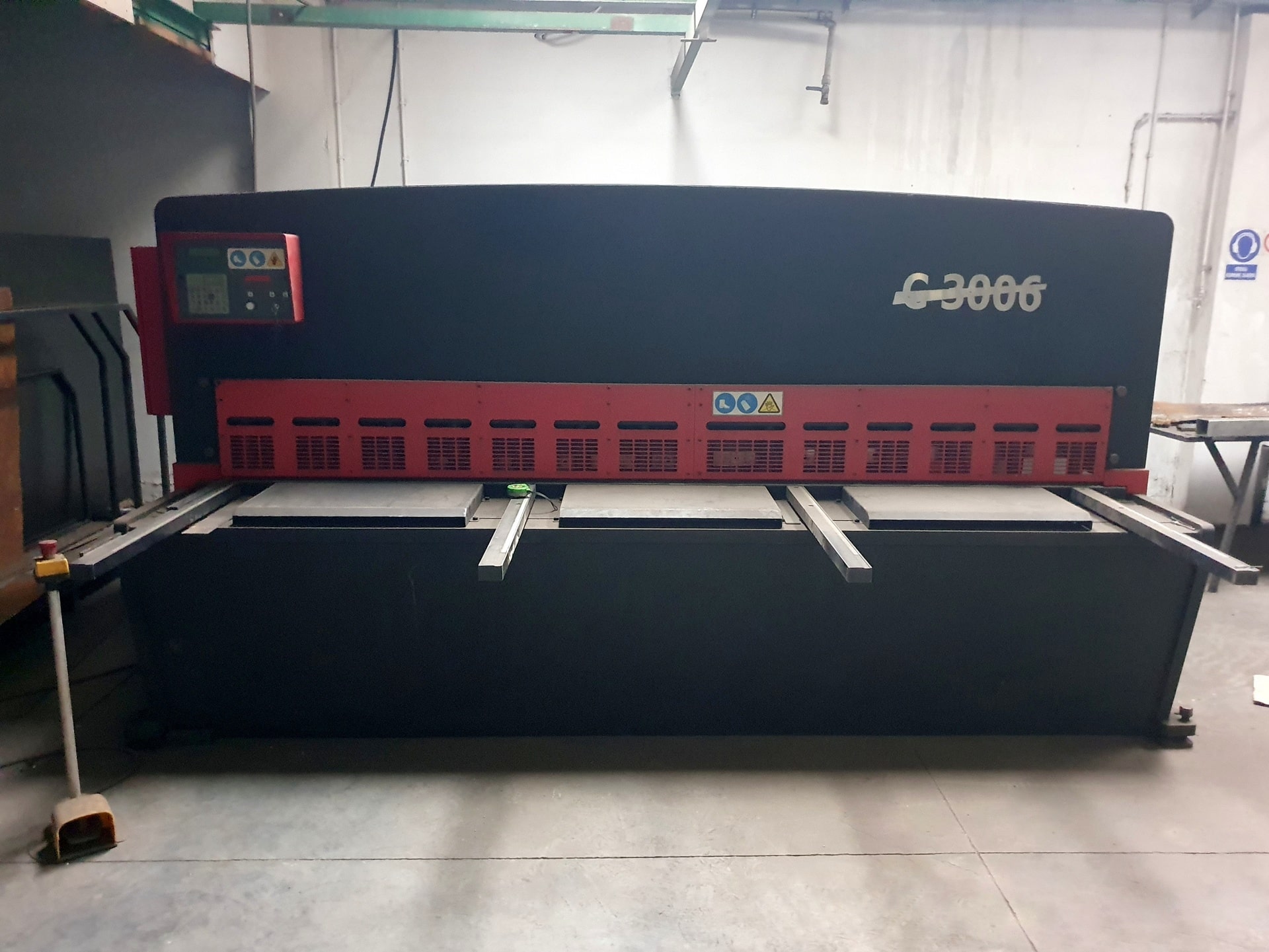

NARGESA C3006 hydraulic guillotine shears

NARGESA C3006 hydraulic guillotine shears were built in 2015 in Spain by PRADA NARGESA, S.L. The machine, which is designed for precision cutting of sheet metal with a maximum thickness of 6 mm, has quality knives with four cutting edges with increased service life. The beam is driven by a powerful hydraulic unit, which, like the electronic system, is made up of components from renowned brands. Easy operation of the machine, on the other hand, is ensured by a digital LCD display with an installed NC controller. The NARGESA guillotine shears weigh 8000 kg. Technical specifications of the NARGESA C3006 guillotine shears maximum workpiece thickness (black steel 450 N/mm2): 6 mm maximum workpiece thickness (stainless steel 700 N/mm2): 4 mm maximum cutting length: 3030 mm number of strokes: 12/min cutting angle: 1,75° maximum back stop distance: 700 mm back stop positioning accuracy: ± 0.1 mm throat depth: 173 mm lateral millimetre scale 1000 mm long on angle arm two additional arms with 1000 mm pitch length hydraulic pump motor power: 9.2 kW oil tank capacity: 96 l power supply: 3x 230/400 V; 50 Hz dimensions (L x W x H): 3750 x 2000 x 1850 mm weight of the NARGESA C3006 machine: 8000 kg Equipment of the hydraulic guillotine shears C 3006 NC control light curtains at the back of the machine knives with four cutting edges hydraulic hold-downs (15 pcs) hydraulic and electronic system with components from well-known brands, e.g. REXROTH, BOSCH, SCHNEIDER ELECTRIC, LG etc. foot switch with safety button cutting zone illumination
